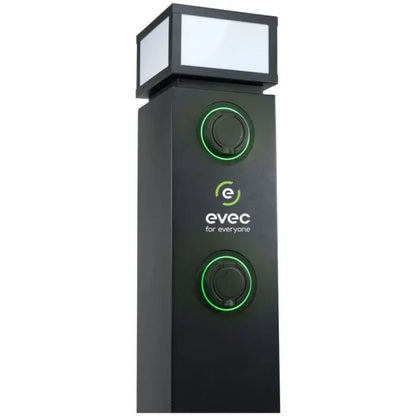

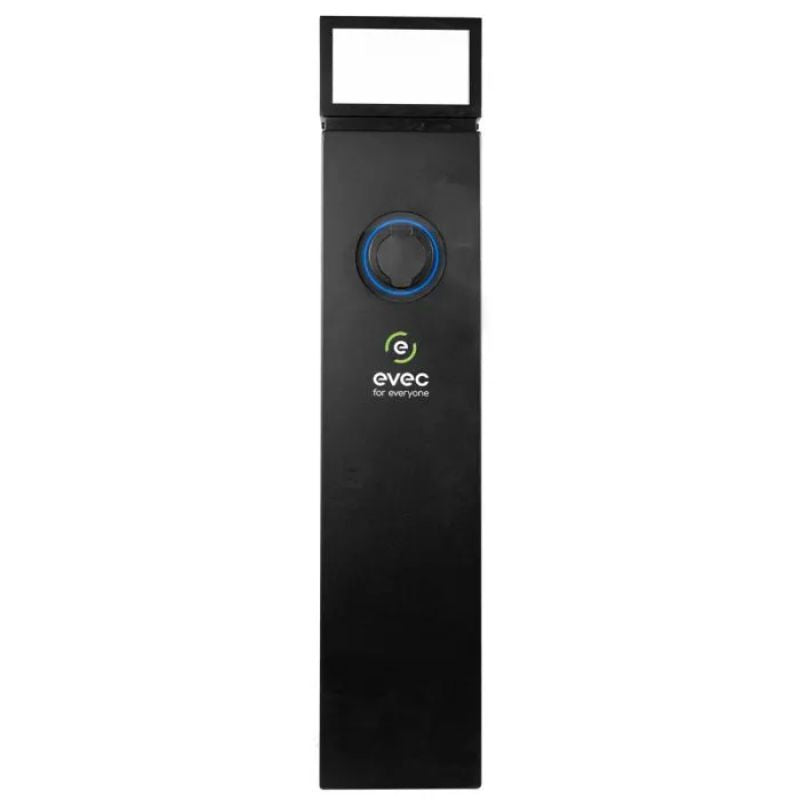

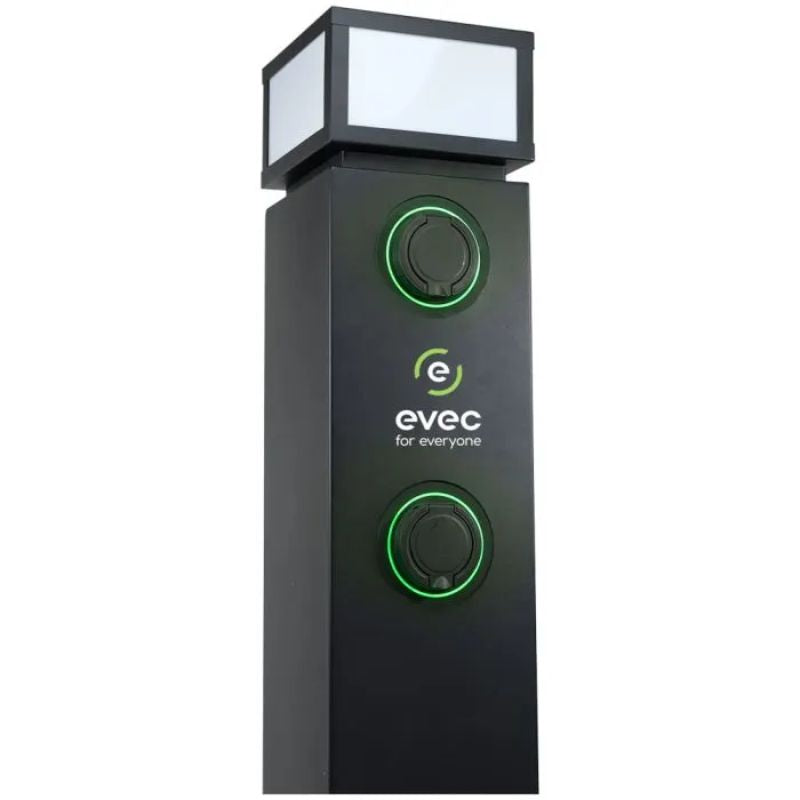

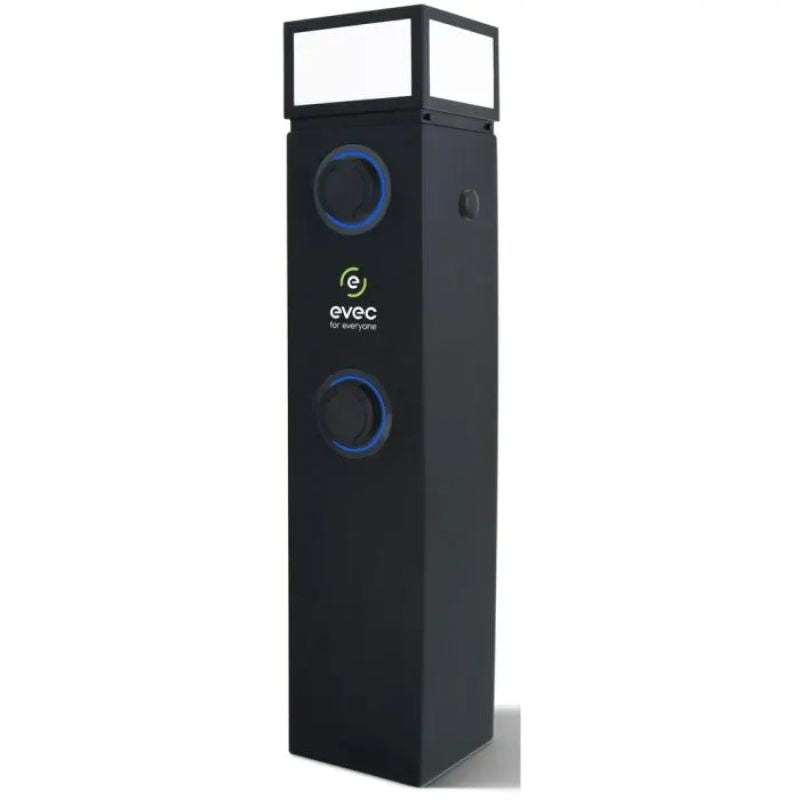

EVEC EV Charger Pedestal 7kW Type 2

EVEC's EV charger pedestal is designed to be compatible with all electric vehicles. The charger can be controlled in multiple ways, including plug & play, pay-to-charge solutions, or via the EVEC app.

The unit is equipped with one or two 7.4kW sockets and features 4G/Wi-Fi/Ethernet connectivity, allowing for automatic over-the-air software updates. An integrated LED light provides excellent visibility for charge point users at night. A RGB LED indicator light around each socket makes it easy to quickly identify the charger's status.

Tough and durable, the galvanised steel pedestals are impact resistant, weatherproof, corrosion resistant and fire retardant. EVEC EV charger pedestals are OCPP 1.6J SON compliant and benefit from built-in over current and 6mA DC leakage protection, as well as integrated PEN protection. EDP01 also features dynamic load management with CT clamps provided.

Key Features of EVEC EV Charger Pedestal:

• Compatible with all EVs & PHEVs
• Compliant with all Smart Charge Regulations

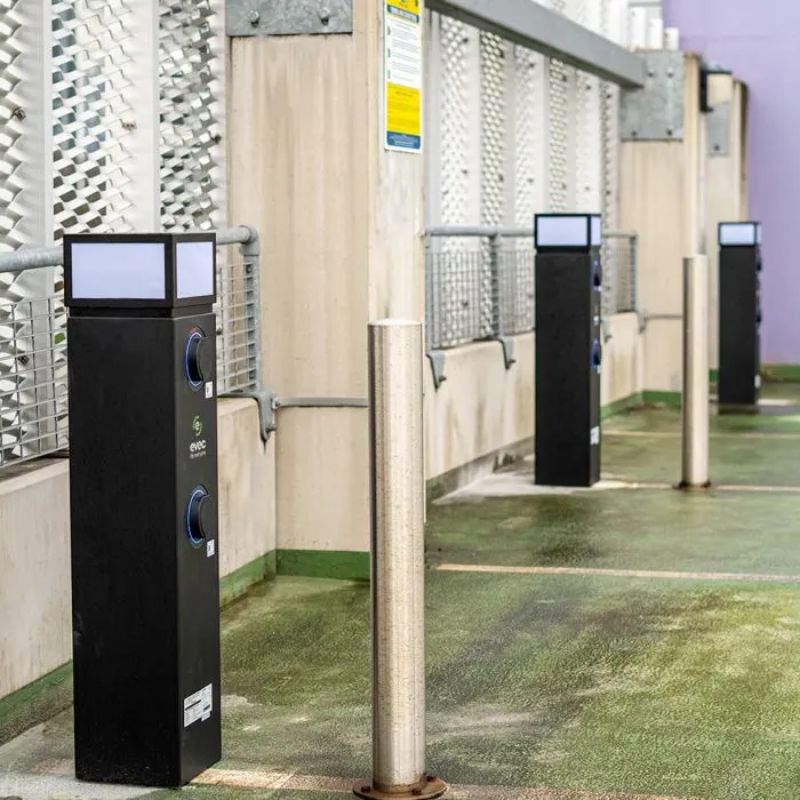

• Ideal for private & company car parks, leisure complexes and hotels, housing developments and other public locations
• Multiple ways to charge: plug & play, pay-to-charge solutions, or via the EVEC app
• One or Two 7.4kW sockets
• 4G/Wi-Fi/Ethernet connectivity
• Over-the-air software updates
• Integrated LED light for excellent visibility at night
• LED Indicator Ring Light Around Each Socket for Easy Status Identification
• OCPP 1.6J SON compliant
• Built-in over current and 6mA DC leakage protection
• Integrated PEN protection
• Dynamic load management with CT clamps provided
• Power Supply: 1P+N+PE
• Voltage: 220-240V
• Current: 2x32A (16A, 13A, 10A Adjustable)
• Galvanised Sheet Powder-Coated Metal Housing
• IP Rating: IP54
• Ambient Operating Temperature: -25°C to 50°C
• Operating Humidity: 3% to 95%
• Dimensions (HxWxD): 1200x250x250mm
• Certifications: CE/UKCA
• Standards: EN IEC 61851, EN 62196
